Overview

PulseChat is a production-grade real-time messaging platform built entirely from scratch as a solo project. Users can discover others through search, build connections via a follow-request system, and chat in real time once both sides are connected. The project covers the full spectrum — from authentication and user safety to WebSocket infrastructure and containerized deployment.

Status: Containerized & Locally Deployed
Version: v1.2.4-stable

The Challenge

Most developers use APIs and HTTP requests — but real-time communication is a different beast entirely. The core motivation behind this project was to deeply understand how WebSockets work, how live data flows between a server and multiple clients simultaneously, and how production chat systems like Instagram or WhatsApp are architected under the hood.

The Solution

Rather than building something abstract, the goal was to recreate a familiar, real-world product — a chat app inspired by Instagram's messaging and follow model — and build it fully from scratch. This forced hands-on learning across the entire stack: designing a social graph, managing WebSocket connections with Django Channels and Redis, securing the app with JWT, OAuth, and 2FA, and finally containerizing everything with Docker and Nginx.

System Demonstration

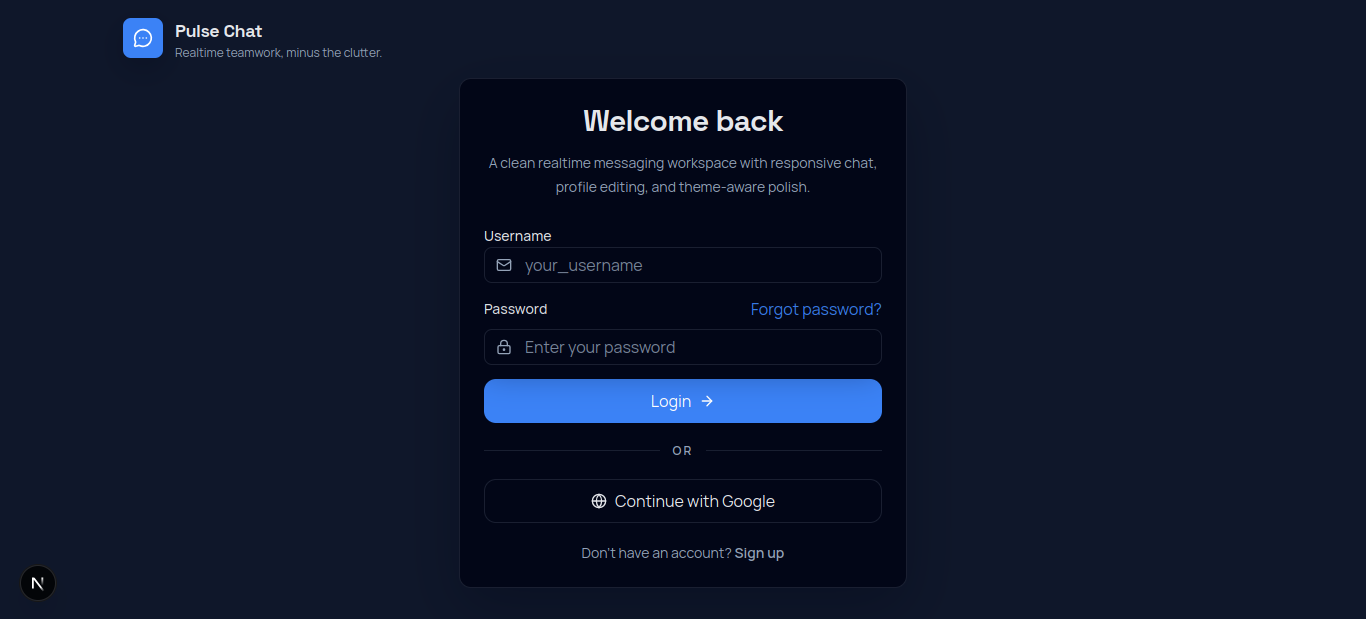

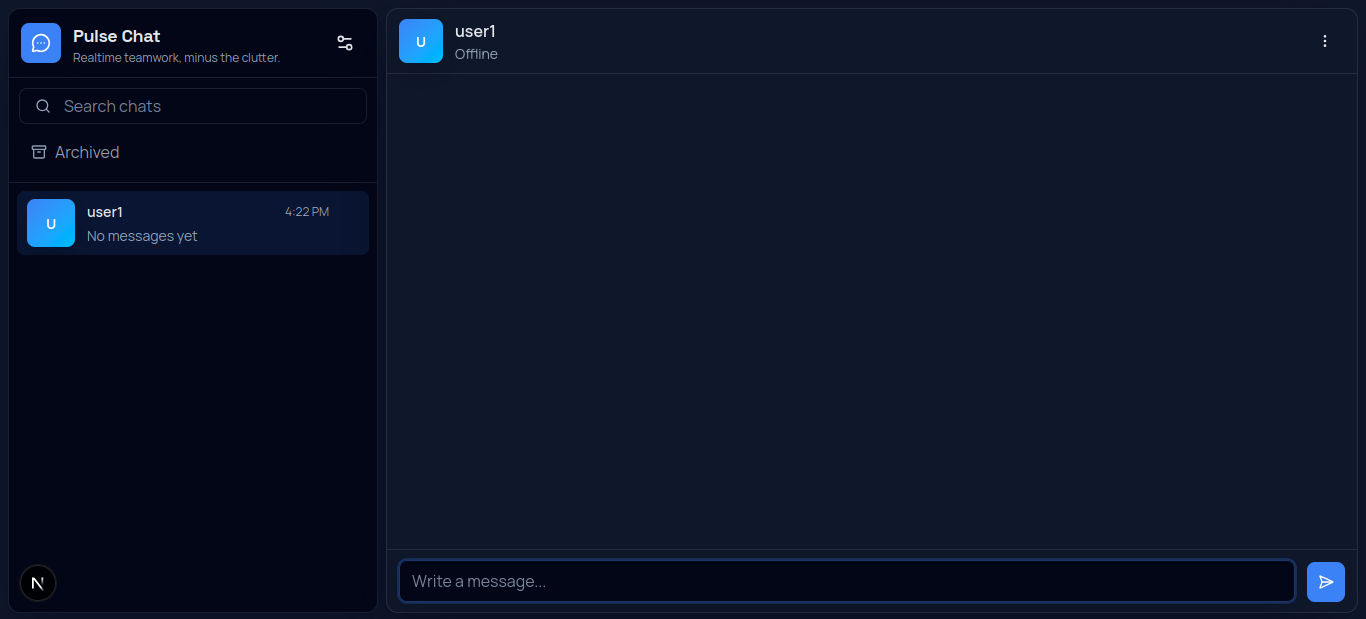

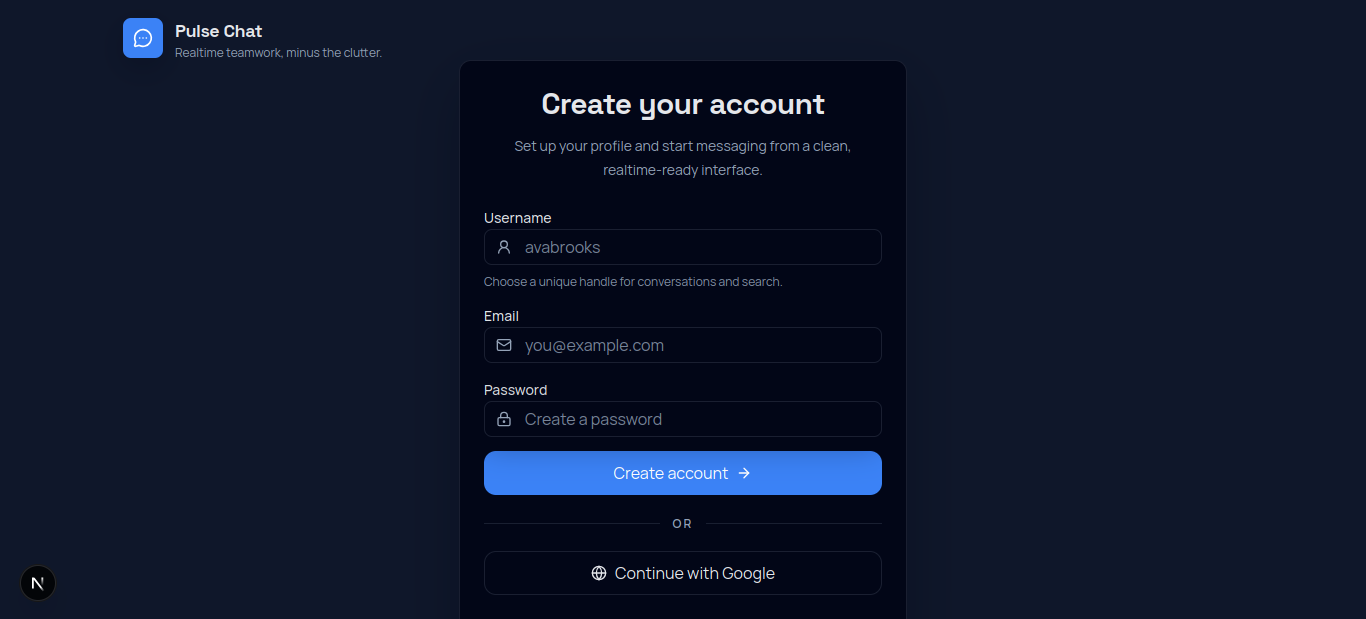

Interface Highlights

Core Capabilities

compare_arrows
Real-Time Messaging

Instant WebSocket chat via Django Channels and Redis.

lock
Multi-Layer Authentication

JWT, Google OAuth, and 2FA combined.

public
Social Connection Model

Chat only with mutually accepted follow requests.

deployed_code
Containerized Deployment

Dockerized stack with Nginx reverse proxy and Daphne.

verified

Enterprise Ready

Designed for 99.99% uptime and global compliance standards.

System Architecture

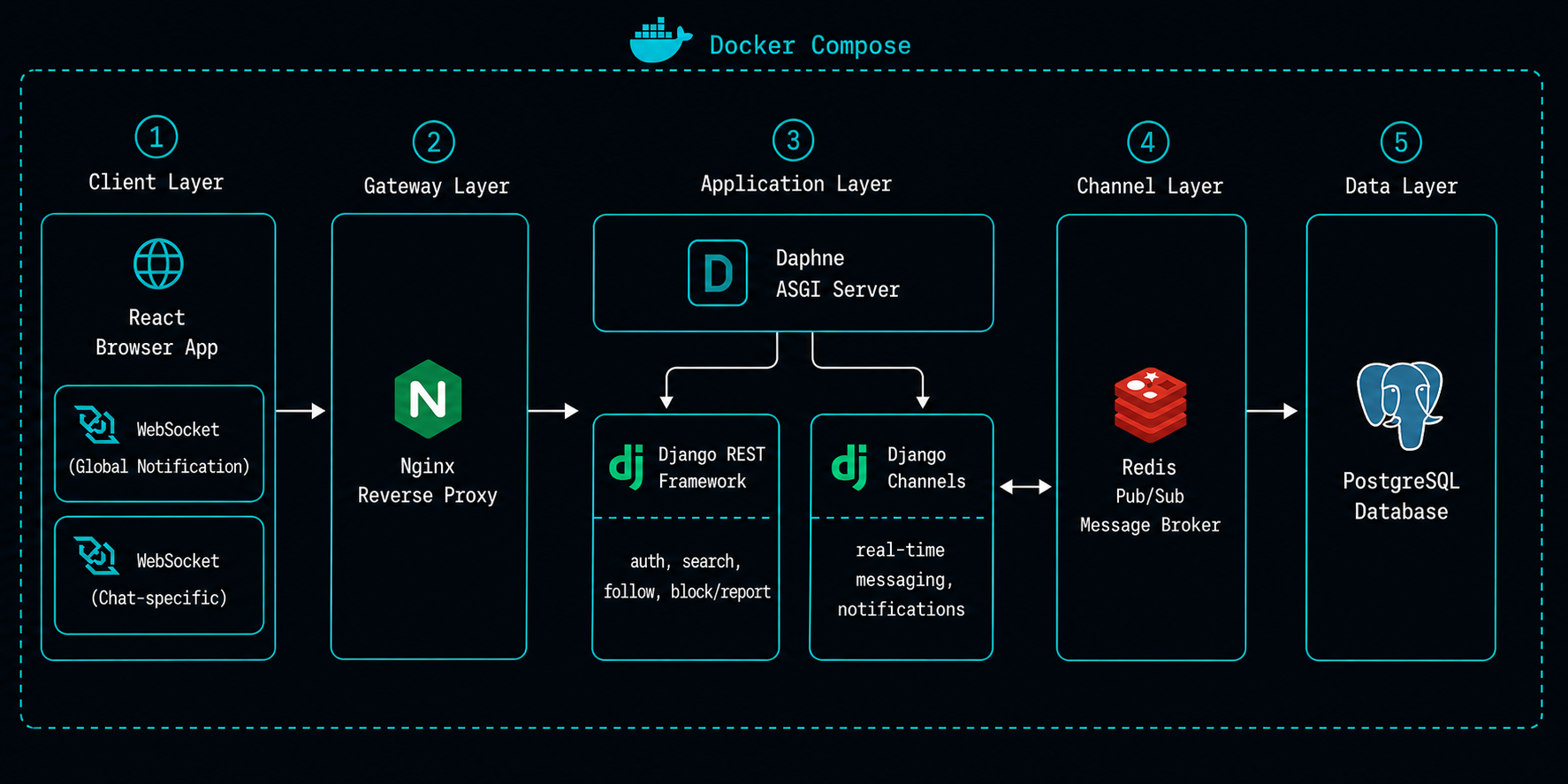

Architecture Diagram

Diagram 1.1: System architecture illustrating the request flow between React, Nginx, Daphne, Django Channels, Redis, and PostgreSQL across HTTP and WebSocket protocols.

Technologies Leveraged

code_xml Python
code Django
terminal React 18
database PostgreSQL
css Tailwind
memory Redis
webhook Nginx
cloud Docker

Challenges & Solutions

CHALLENGE 01

Multi-Chat Notification Problem

When two users are actively chatting, any message sent by a third person goes unnoticed unless the recipient manually opens that conversation.

THE SOLUTION

Implemented two separate WebSocket connections — a global connection established when the user loads the app, dedicated to receiving real-time notifications from any user, and a chat-specific connection opened only when a conversation is active. This way, even mid-conversation, incoming messages from others surface instantly as notifications without interrupting the current chat.

CHALLENGE 02

Multiple Simultaneous WebSocket Connections

A user needed real-time notifications while actively chatting — requiring two WebSocket connections running simultaneously without conflicts.

THE SOLUTION

Built two React custom hooks — one for global notifications, one for active chat — keeping each connection's state and logic cleanly separated.

rocket_launch

Deployment & Infrastructure

System Data Flow

Request Pipeline

terminal React
arrow_forward
dns Nginx
arrow_forward
router Daphne
arrow_forward
settings_ethernet Django Rest Framework

WebSocket Logic

person User Client
arrow_back arrow_forward
hub Channels
arrow_back arrow_forward
memory Redis Pub/Sub

Database Pipeline

settings_ethernet Django Rest Framework
arrow_forward
cloud Docker
arrow_forward
database PostgreSQL

Specs & Security

settings_input_component
Infrastructure Stack
  • OSUbuntu 24.04 LTS
  • RuntimeDocker 29.6
  • ProxyNginx Stable
  • LanguagePython 3.12
  • ASGI ServerDaphne 4.2
  • Channel Layer Redis 8.8
  • DatabasePostgreSQL 18.4
security
Security Enforcement

Secrets Management

Environment variables via .env, never hardcoded.

Authentication

JWT, Google OAuth, and 2FA for multi-layer access control.

CORS Policy

Restricted to trusted origins during development.

Technical Lessons Learned

Real-Time Communication

Architecting dual WebSocket connections using Django Channels and Redis to separately handle live chat and global notifications.

Auth & Security

Combining JWT, Google OAuth, and TOTP-based 2FA into a unified authentication flow with environment-based secrets management.

Database Design

Modeling a social graph with follow requests, user relationships, and chat history using PostgreSQL with Django ORM.

Dockerization

Containerizing a multi-service stack — Django, Daphne, Redis, PostgreSQL, Nginx — using Docker Compose with persistent volumes.

API Design

Designing RESTful endpoints with Django REST Framework handling both standard HTTP and ASGI-compatible WebSocket routing via Daphne.

Frontend Architecture

Building modular React custom hooks to manage multiple simultaneous WebSocket connections with clean separation of concerns.

code

Explore the Source Code

The entire project is open-source. Contributions, bug reports, and requests are welcome via GitHub.
