Overview

ResumeAI is a full-stack resume builder built with Next.js, leveraging its API routes as the backend and React for the frontend — keeping everything in a single codebase. Users can build a resume from scratch using one of 3 professionally designed templates, get AI-powered content suggestions via OpenAI, preview changes in real time, save their work, and export a pixel-perfect PDF using Puppeteer. Authentication is handled via Supabase and resumes are persisted in PostgreSQL.

Status: Deployed
Version: v2.4-stable

The Challenge

Professional resume builders like FlowCV lock essential features behind expensive subscriptions, and managing multiple versions of a resume for different job applications is tedious and time-consuming.

The Solution

Built a free, self-owned resume builder with AI assistance to generate and refine content on the fly, multiple templates to switch between, and a save system that lets users maintain and edit multiple resumes from a single dashboard — all without a paywall.

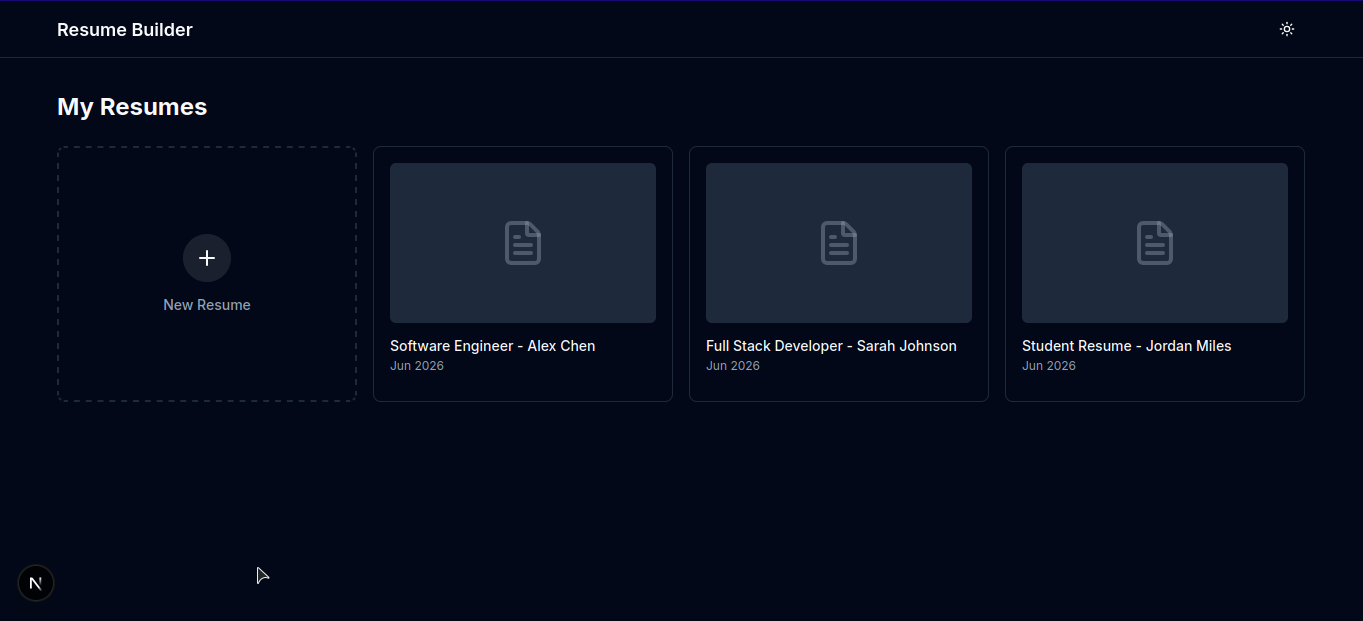

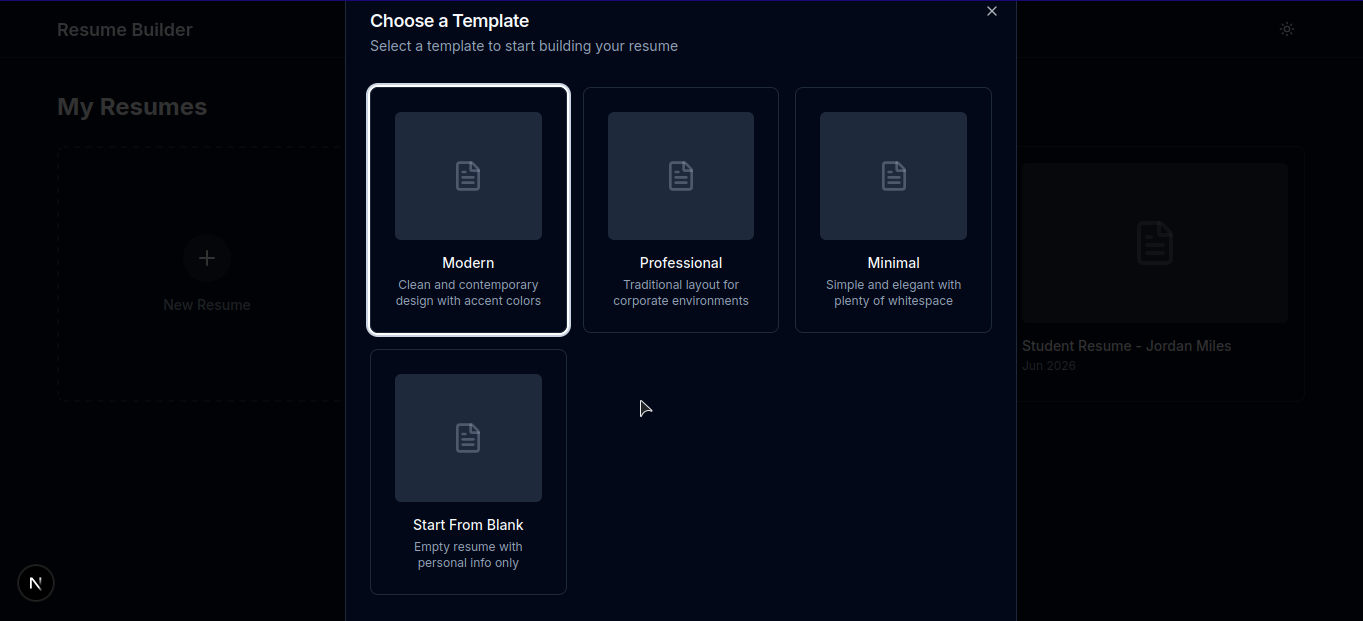

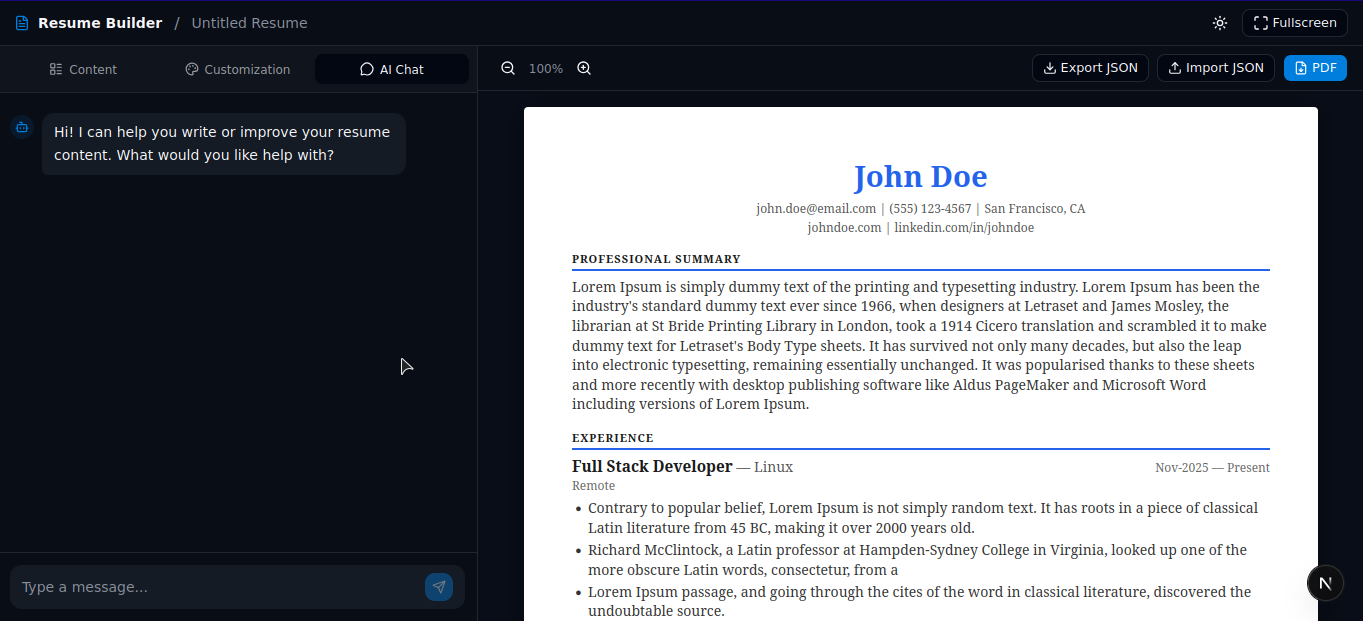

System Demonstration

Interface Highlights

Core Capabilities

smart_toy
AI-Powered Writing

OpenAI generates resume content, improves bullet points, and suggests relevant skills based on job title.

visibility
Real-Time Preview

Live rendering of the resume as the user fills in their details.

picture_as_pdf
PDF Export

High-fidelity PDF generation using Puppeteer, matching the on-screen design exactly.

lock
Authentication

Supabase-powered cloud auth for secure login and user management.

verified

Enterprise Ready

Designed for 99.99% uptime and global compliance standards.

System Architecture

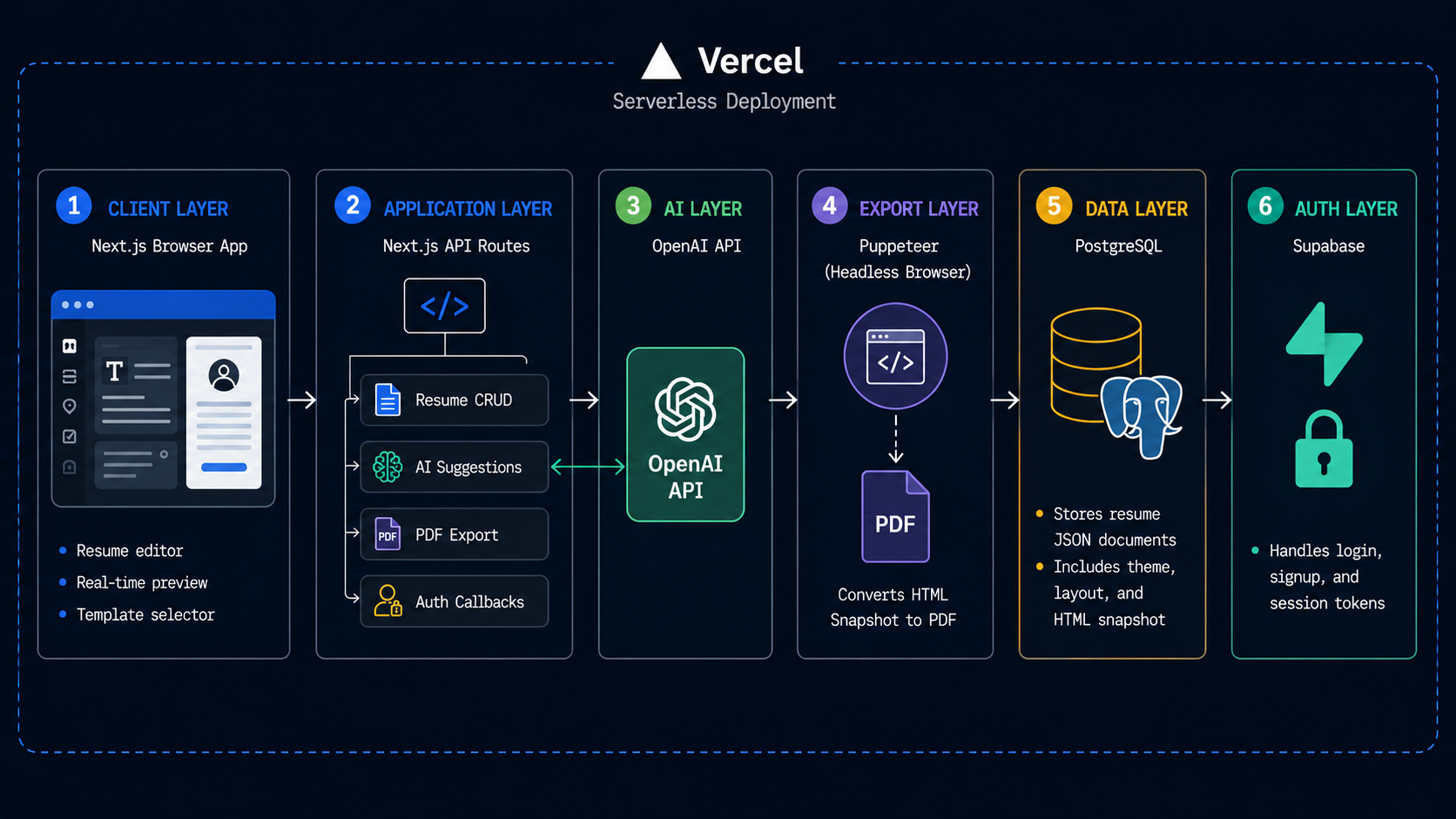

Architecture Diagram

Diagram 1.2: System architecture illustrating the request flow between Next.js, OpenAI API, Puppeteer, PostgreSQL, and Supabase across REST and serverless function protocols.

Technologies Leveraged

javascript JavaScript
code Next.js
terminal React 18
database PostgreSQL
css Tailwind
lock Supabase
picture_as_pdf Puppeteer
cloud Vercel

Challenges & Solutions

CHALLENGE 01

Storing Resume Data

Storing a resume in a relational way — sections, fields, styles, layouts — is complex and hard to query or reconstruct consistently for PDF export and AI processing.

THE SOLUTION

Stored the entire resume as structured JSON (including theme and layout) in a JSONB field in PostgreSQL, alongside a pre-rendered HTML snapshot for PDF export. This made Puppeteer export straightforward, AI processing simpler, and the data structure flexible enough to support any template.

CHALLENGE 02

Custom Section Layout

Each built-in section has a defined layout — but custom sections created by users have no inherent structure, making consistent rendering and styling unpredictable.

THE SOLUTION

Introduced a predefined field type system — when creating a custom section, users pick from field types like text, list, tags, and date range. Each field type carries its own layout and styling rules, so rendering stays consistent regardless of the section. Skills and projects reuse the same field types, keeping the system lean and uniform.

rocket_launch

Deployment & Infrastructure

System Data Flow

User Flow

person User
arrow_forward
article Resume
arrow_forward
insert_page_break Editor
arrow_forward
picture_as_pdf PDF Export

Authentication Logic

person User Client
arrow_back arrow_forward
article Resume Builder
arrow_back arrow_forward
lock Supabase

Database Pipeline

computer User Client
arrow_forward
lock Supabase
arrow_forward
database PostgreSQL

Specs & Security

settings_input_component
Infrastructure Stack
  • Frontend + BackendNext.js-16.2
  • AIOpenAI API
  • AuthSupabase
  • PDF ExportPuppeteer
  • Deployment Vercel
  • DatabasePostgreSQL 18.4
security
Security Enforcement

Secrets Management

Environment variables via .env, never hardcoded.

Authentication

Cloud-based auth via Supabase.

Technical Lessons Learned

AI Integration

Integrating OpenAI API into a production workflow to generate, rewrite, and suggest resume content dynamically based on user input and job context.

PDF Generation

Producing pixel-perfect PDF exports using Puppeteer by rendering pre-stored HTML snapshots, decoupling the export process from live UI state.

Auth & Security

Implementing Supabase for secure, scalable user authentication — handling signup, login, and session management without building auth infrastructure from scratch.

Next.js Full-Stack

Leveraging Next.js API routes as a lightweight backend alongside React on the frontend — eliminating the need for a separate server while keeping the codebase unified.

Dynamic Rendering

Building a real-time resume preview system that reflects user edits instantly using React state, with a field-type system that enforces consistent layout across both built-in and custom sections.

Data Modeling

Designing a flexible JSONB schema to store resume structure, theme, and layout as a single document — enabling fast retrieval, AI processing, and template switching without schema migrations.

code

Explore the Source Code

The entire project is open-source. Contributions, bug reports, and requests are welcome via GitHub.

terminal View GitHub
